Keep it Straight
The straight corner touch screen is more suitable for kiosks with a straight enclosure
it creates a sharp view and slim shape for your straight kiosk

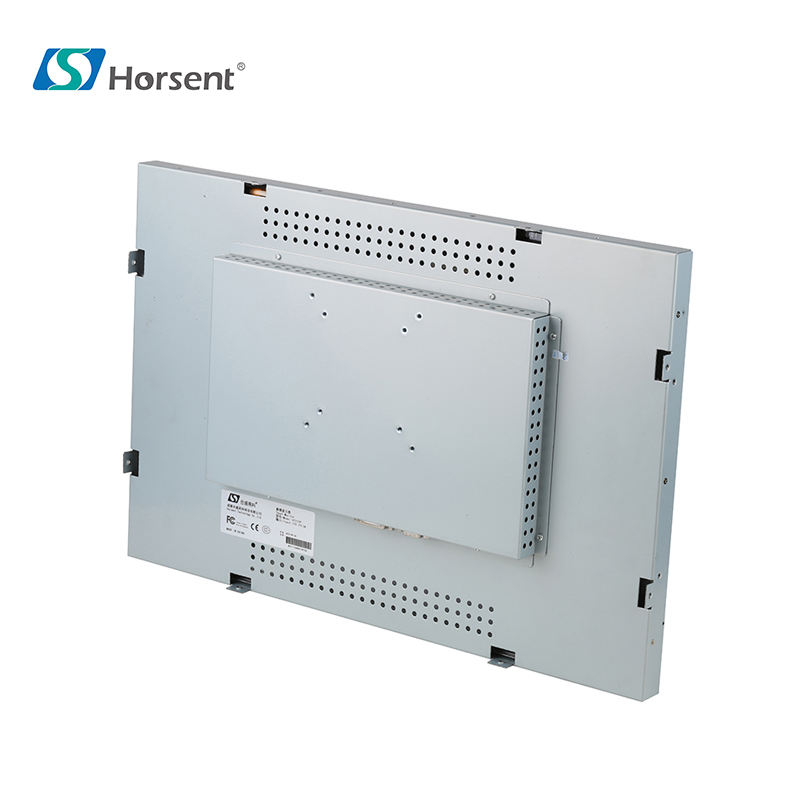

No bezel, More Display
This zero bezel open frame display
is made for the front installation
and same level with kiosk enclosure
More and full display for kiosk and gaming
21.5inch as the bestseller of touchscreen in size
Horsent offers a broad spectrum of custom design
Durable Solution Demanding Selection
As the most welcomed size and solution since year of 2014
and product selection we are proud of
21.5inch open frame touchscreen has
proved its great success and durability still low price
by the massive production.
Physical Features
Mode injection
Seamless front surface
True flat assembled with cabinet
Performance
Stable and durable
Horsent apply the finest and most popular components, such as durable LED display panel from AUO and Horsent touchscreen sensor, combined with proven standard processes and certified quality conformity, We offer stable and durable touchscreen.
Long product life
30,000~50,000Hours of lifetime for the LED life and firm internal and external structure, you will be released from quality issues.
Easy integration
Stepped bezel for easy and quick kiosk installation, steady and fast.
24/7
24/7 at your service!
Product Specification
|
DISPLAY |
LCD panel Size |
21.5 inch open frame touchscreen |
|
Aspect Ratio |
16:09 |
|
|
Backlight Type |
LED Backlight |
|
|
Pixel Pitch |
0.248mm x 0.248mm |
|
|
Active Area |
476.64mm x 268.11mm |
|
|
Best Resolution |
1920 × 1080 @ 60 Hz |
|
|
Response Time |
25 MS |
|
|
Color |
16.7 million |
|
|
Brightness |
LCD Panel: 250 cd/m2 |
|
|
Contrast Ratio |
1000:1 (standard Values) |
|
|
Viewing Angle (CR > 10) |
Horizontal: 178° (89°/89°) |
|
|
Vertical: 178° (89°/89°) |
||
|
Video Input Format |
RGB Analog Signal/ Digital Signal |
|
|
Video Input Interface |
VGA / DVI / HDMI |
|
|
Input Frequency |
Horizontal: 30~82 Hz Vertical: 50~75 Hz |
|
|
TOUCH |
Touch Screen Type |
10 Points Capacitive Touch Screen |
|
Cover Glass |
3 mm |
|
|
Transparency |
87% |
|
|
Hardness |
7H |
|
|
Interface |
USB2.0 |
|
|
Response Time |
≤10 ms |
|
|
Touch Method |
Finger / Capacitive Pen |
|
|
Touch Lifespan |
≥50,000,000 |
|
|
Linearity |
＜2% |
|
|
Multi-point OS |
Windows7/8/10/11，Android |
|
|
SHIPPING |
Boundary Dimension |
500.0mmx328.40mmx48mm |
|
Packing size |
To Be Determined |
|
|
Weight |
Net: To Be Determined Shipping: To Be Determined |
|
|
INSTALLATION |
Installation |
Side Mounting Bracket，VESA 75mm&100mm |
|
Temperature |
Operating: 0℃-40℃； Storage: -20℃-60℃ |
|
|
Humidity |
Operating: 20%-80%; Storage: 10%-90% |
|
|
Operation Altitude |
＜3000m |
|
|
POWER |
Power Supply |
Input：DC 12V±5% |
|
Power Consumption |
Max：30w; Sleep：3w; Off：2w |
|
|
GENERAL |
Warranty |
1 Year. |
|
Accessories |
Power Cord/Adapter, USB or COM Cable (Optional) ; VGA Cable & HDMI or DVI Cable (Optional), Bracket (Optional) |
Drawing
Custom-design Option
Privacy filter
Tempered glass
High brightness
Brightness auto adjustable
Waterproof
dust proof
Anti-glare
Anti-finger print
Speaker
Camera
Industrial solution
Logo print
Touch panel desig
Desk top stand
Application Field
Banking
Gaming
Industry
Self-service terminal
Accessories
Power Cord
Side Mount Bracket
Wall Mount Bracket
