-10℃~60℃ for Industry!
-10℃ is set for your outdoor application in winter
+60℃ is set for your outdoor summer operation
Horsent delivery industrial-grade touch screen to expand your business
into the open yard
Zero Bezel for Front Installation
The industrial machine always ask for front installation for easy mounting
Horsent offers front installation
for most of its small size touchscreen for industrial users
Small but Everything
We integrate all popular ports: VGA, DVI &HDMI
to meet your connection demand in limited space
Durable and Reliable
Safe operation is the first factor in the industry
Horsent offers durable touch screen
for industrial users operation in 24/7 harsh factories
Average Lead time: one week
One year standar warranty and warranty extension service
Packaging: 4 in one carton
Industrial touch screen Top Features
Tooling Based
Seamless front
-10℃~60℃
Performance
Safe from traditon
10 inch as the touchscreen with the longest tradition trace back to 2000s,
As the most productive touchscreen proved by decades of production
Ensure your places as safe and sound
Bult for endure
50 Millions of touch operation life and 30,000~50,000Hours of display , you will be released from worries
Made for Machine display
Born for factory machine installation, zero bezel for front installation and easy set up
All work and no play
no shift, ready to be 24/7 at your service!
Product Specification

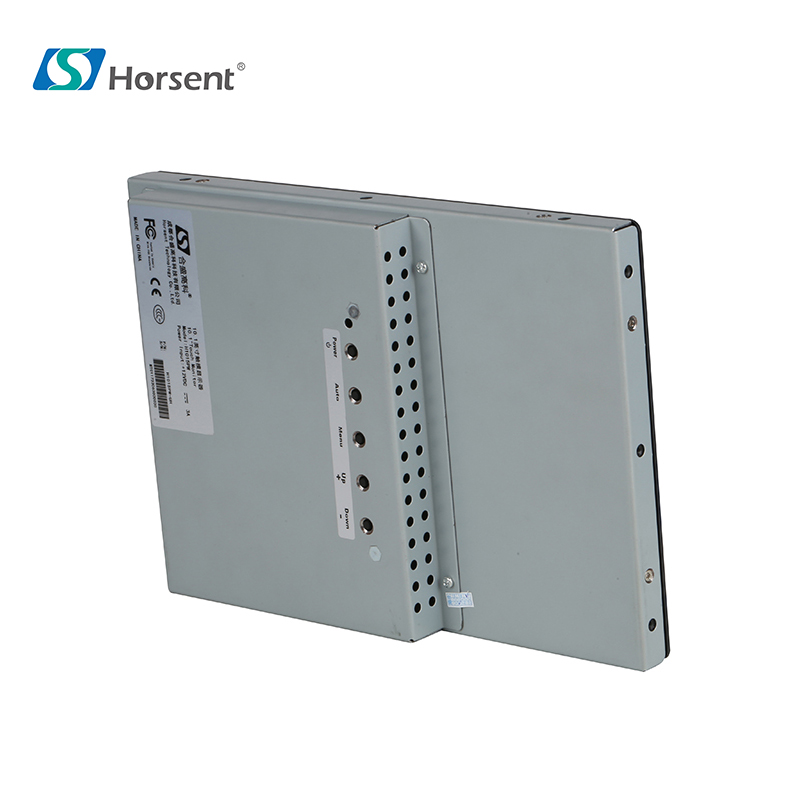

10 inch PCAP LCD Touch Monitor
| Product Model | H1015PW-UH | |
| Size | 10.1 inch | |
| Aspect Ratio | 16： 10 | |
| Backlight Type | LED Backlight | |
| Pixel Pitch | 0.1695mm x 0.1695mm | |
| Active Area | 216.96mm x 135.60mm | |
| Best Resolution | 1280 × 800 @ 60 Hz | |
| Response Time | 25 ms | |
| Color | 16.7 million | |
| Brightness | LCD Panel: 230 cd/m2 | |
| Contrast Ratio | 600:1 (standard Values) | |
| Viewing Angle (CR > 10) | Horizontal: 160° (80°/80°) Vertical: 160° (80°/80°) | |
| Video Input Format | RGB Analog Signal/ Digital Signal | |
| Video Input Interface | VGA / HDMI / DVI-D | |
| Input Frequency | Horizontal: 30~82 Hz Vertical: 50~75 Hz | |
| Power Consumption | ≤4W | |
| Touch Screen Technical Parameter |
Capacitive Touch Screen | |
| Cover Glass | 2.0mm | |
| Transparency | 87% | |
| Hardness | 7H | |
| Interface | USB2.0 | |
| Touch Point | 10 | |
| Response Time | ≤15 ms | |
| Touch Method | Finger / Capacitive Pen | |
| Touch Lifespan | ≥50,000,000 | |
| Linearity | ＜ 2% | |
| Single-point OS | Windows XP， Linux | |
| Multi-point OS | Windows7/8/10/11， Android | |
| Dimension | 258mm × 176mm × 37mm | |
| OSD Panel | Optional Accessory : Power switch、 Menu、 Up、 Auto、 Down | |
| Power Supply | Input： DC 12V±5% | |
| Power Consumption | Max：7w; Sleep：1w; Off： 0.5w | |
| Installation | Side Mounting Bracket | |
| Accessory (Optional) |
VGA, HDMI, D-SUB 15 pin, male to male, 1.5m | |
| USB Wire | A male to B male， 1.8m | |
| Adaptor | WT1203000， 12V/3.0A， 115mmx47mmx31mm， Length 1.0m， ￠ 2.5， Black |
|
| Power Line | CCC Power Line, 1.5m， Black | |
| Temperature | Operating: -10℃-60℃； Storage: -20℃-60℃ | |
| Humidity | Operating : 20% -80% ; Storage: 10%-90% | |
| Operation Altitude | ＜ 3000m |
Drawing
Custom-design Option
Privacy filter
Tempered glass
High brightness
Brightness auto adjustable
Waterproof
dust proof
Anti-glare
Anti-finger print
Speaker
Camera
industrial touch screen
Logo print
Touch panel desig
Desk top stand
Popular Place to Use
Banking
Industry
Self-service terminal
Accessories
Power Cord
Side Mount Bracket
